Federated Credential Management

FedCM, as it is abbreviated, is a platform feature that requires a full-stack implementation. As such, its code is scattered throughout the codebase and it can be hard to follow the flow of execution. This documentation aims to make those two points easier.

Code sites

Code relevant to it can be found in all of the following places.

The webidl for this spec lives in dom/webidl/IdentityCredential.webidl

Core spec algorithm logic and the implementation of the IdentityCredential live in dom/credentialmanagement/identity/IdentityCredential.{cpp,h}. The static functions of IdentityCredential are the spec algorithm logic. Helpers for managing the IdentityCredential.webidl objects are in the other files in dom/credentialmanagement/identity/. The IPC is defined on the WindowGlobal in dom/ipc/PWindowGlobal.ipdl and dom/ipc/WindowGlobalParent.cpp, and is a very thin layer.

The service for managing state associated with IdentityCredentials is IdentityCredentialStorageService and the service for managing the UI prompts associated with IdentityCredentials is IdentityCredentialPromptService. Both definitions and implementations are in toolkit/components/credentialmanagement.

The UI panel is spread around a little. The actual DOM elements are in the HTML subtree with root at #identity-credential-notification in browser/base/content/popup-notifications.inc. But the CSS describing it is spread through browser/themes/shared/customizableui/panelUI-shared.css, browser/themes/shared/identity-credential-notification.css, and browser/themes/shared/notification-icons.css. Generally speaking, search for identity-credential in those files to find the relevant ids and classes.

Temporary content strings, which will be moved when included in i18n: browser/components/credentialmanager/identityCredentialNotification.ftl, for now. This will eventually be moved to browser/locales/en-US/browser/.

All of this is entered from the navigator.credentials object, implemented in dom/credentialmanagement/CredentialsContainer.{cpp,h}.

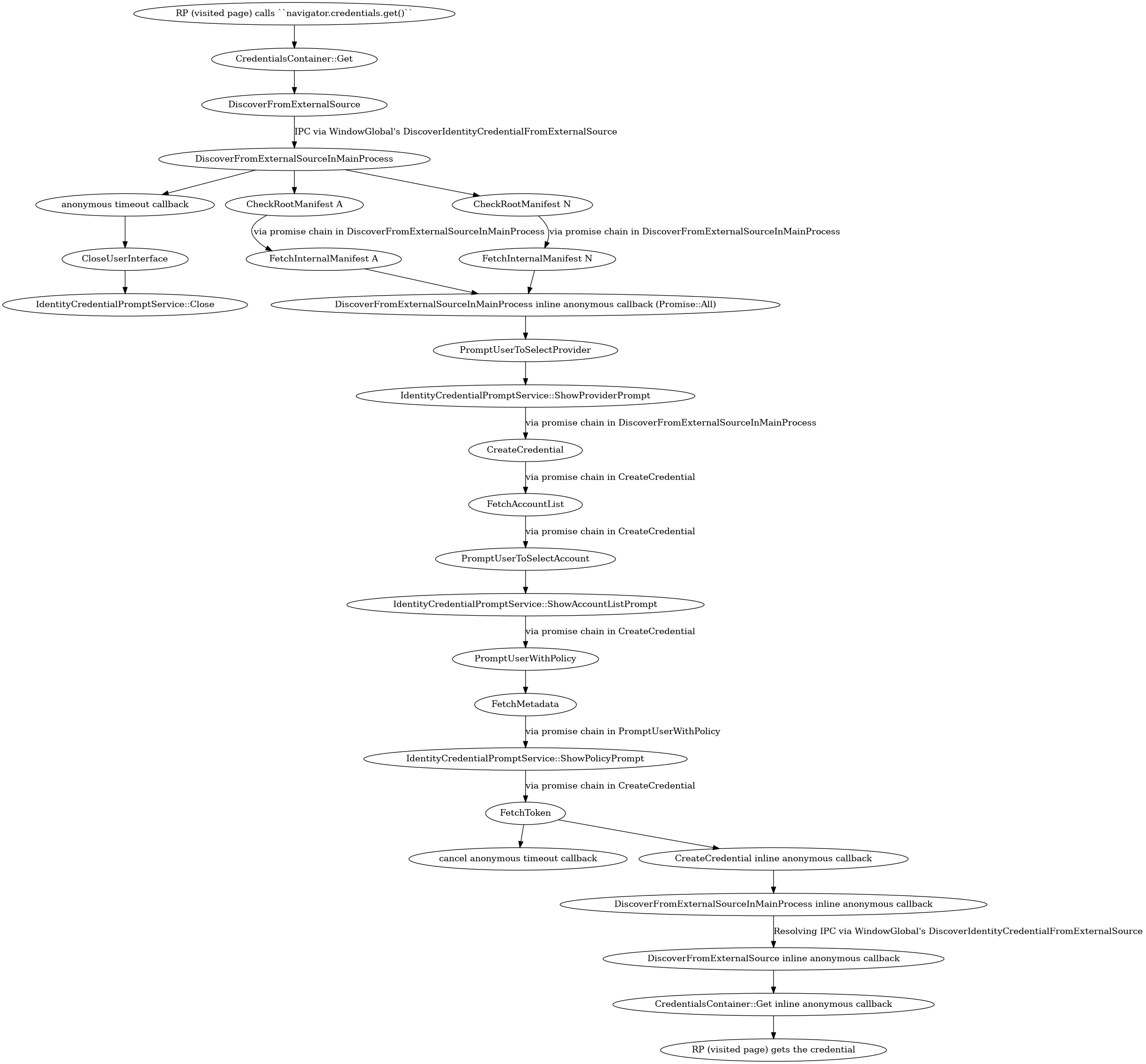

Flow of Execution

This is the general flow through code relevant to the core spec algorithms, which happens to be the complicated parts imo.

A few notes:

  • All functions without a class specified are in IdentityCredential.

  • Functions in IdentityCredentialPromptService mutate the Chrome DOM

  • FetchT functions send network requests via mozilla::dom::FetchJSONStructure<T>.

  • A call to IdentityCredentialStorageService is made in PromptUserWithPolicy

digraph fedcm {
  "RP (visited page) calls ``navigator.credentials.get()``" -> "CredentialsContainer::Get"
  "CredentialsContainer::Get" -> "DiscoverFromExternalSource"
  "DiscoverFromExternalSource" -> "DiscoverFromExternalSourceInMainProcess" [label="IPC via WindowGlobal's DiscoverIdentityCredentialFromExternalSource"]
  "DiscoverFromExternalSourceInMainProcess" -> "anonymous timeout callback" -> "CloseUserInterface" -> "IdentityCredentialPromptService::Close"
  "DiscoverFromExternalSourceInMainProcess" -> "CheckRootManifest A"
  "CheckRootManifest A" -> "FetchInternalManifest A" [label="via promise chain in DiscoverFromExternalSourceInMainProcess"]
  "FetchInternalManifest A" -> "DiscoverFromExternalSourceInMainProcess inline anonymous callback (Promise::All)"
  "DiscoverFromExternalSourceInMainProcess" -> "CheckRootManifest N"
  "CheckRootManifest N" -> "FetchInternalManifest N" [label="via promise chain in DiscoverFromExternalSourceInMainProcess"]
  "FetchInternalManifest N" -> "DiscoverFromExternalSourceInMainProcess inline anonymous callback (Promise::All)"
  "DiscoverFromExternalSourceInMainProcess inline anonymous callback (Promise::All)" -> "PromptUserToSelectProvider"
  "PromptUserToSelectProvider" -> "IdentityCredentialPromptService::ShowProviderPrompt"
  "IdentityCredentialPromptService::ShowProviderPrompt" -> "CreateCredential" [label="via promise chain in DiscoverFromExternalSourceInMainProcess"]
  "CreateCredential" -> "FetchAccountList" [label="via promise chain in CreateCredential"]
  "FetchAccountList" -> "PromptUserToSelectAccount" [label="via promise chain in CreateCredential"]
  "PromptUserToSelectAccount" -> "IdentityCredentialPromptService::ShowAccountListPrompt"
  "IdentityCredentialPromptService::ShowAccountListPrompt" -> "PromptUserWithPolicy" [label="via promise chain in CreateCredential"]
  "PromptUserWithPolicy" -> "FetchMetadata"
  "FetchMetadata" -> "IdentityCredentialPromptService::ShowPolicyPrompt" [label="via promise chain in PromptUserWithPolicy"]
  "IdentityCredentialPromptService::ShowPolicyPrompt" -> "FetchToken" [label="via promise chain in CreateCredential"]
  "FetchToken" -> "cancel anonymous timeout callback"
  "FetchToken" -> "CreateCredential inline anonymous callback"
  "CreateCredential inline anonymous callback" -> "DiscoverFromExternalSourceInMainProcess inline anonymous callback"
  "DiscoverFromExternalSourceInMainProcess inline anonymous callback" -> "DiscoverFromExternalSource inline anonymous callback" [label="Resolving IPC via WindowGlobal's DiscoverIdentityCredentialFromExternalSource"]
  "DiscoverFromExternalSource inline anonymous callback" -> "CredentialsContainer::Get inline anonymous callback"
  "CredentialsContainer::Get inline anonymous callback" -> "RP (visited page) gets the credential"
