MenuMessage

MenuMessage displays a contextual call-to-action card inside Firefox’s panel menus: the App Menu (hamburger) and the PXI Menu (Firefox Accounts avatar panel).

Surfaces

Surface	testingTriggerContext	Supported messageType
App Menu	app_menu	fxa_cta, default_cta
PXI Menu	pxi_menu	fxa_cta only

Message Types

• fxa_cta: Firefox Accounts sign-in prompt. Hidden for signed-in users unless allowWhenSignedIn: true. Available in both the App Menu and PXI Menu.

• default_cta: General CTA. App Menu only. Always shown regardless of sign-in state.

Layouts

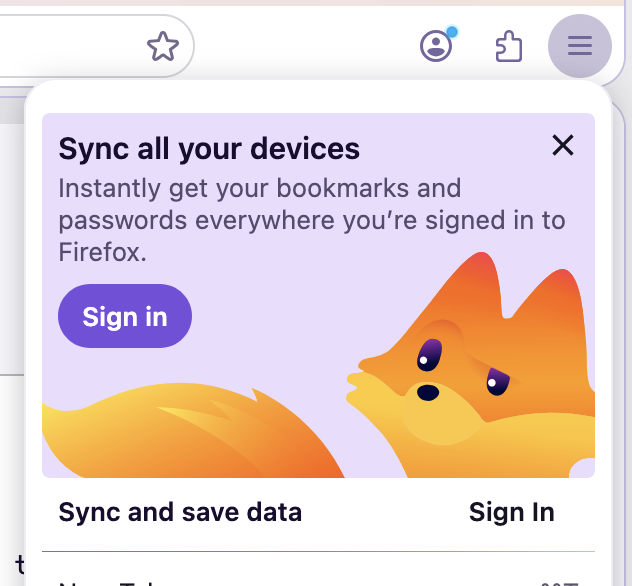

• column (default): Illustration above text with a button stack below.

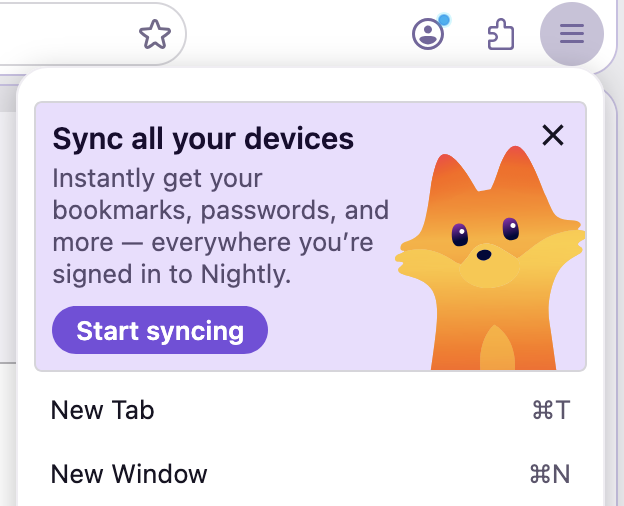

• row: Text on the left, button and illustration on the right.

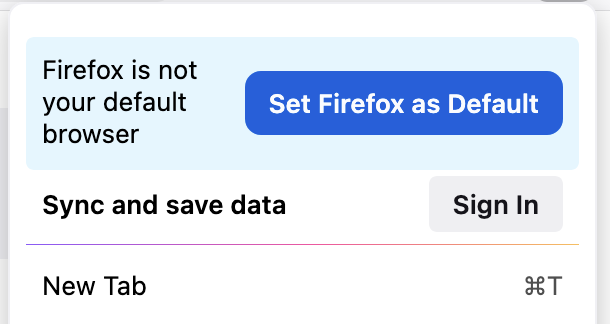

• simple: Single row with primary text and button only — no image or secondary text.

Testing Menu Messages

Via the dev tools:

1. Set browser.newtabpage.activity-stream.asrouter.devtoolsEnabled to true in about:config

2. Go to about:asrouter

3. Select panel as the provider and find messages with "template": "menu_message"

4. Click Show — the testingTriggerContext field on the message determines which menu surface is simulated

5. Paste custom JSON in the text area and click Modify to preview changes

Via Experiments:

Messaging Journey

Example JSON

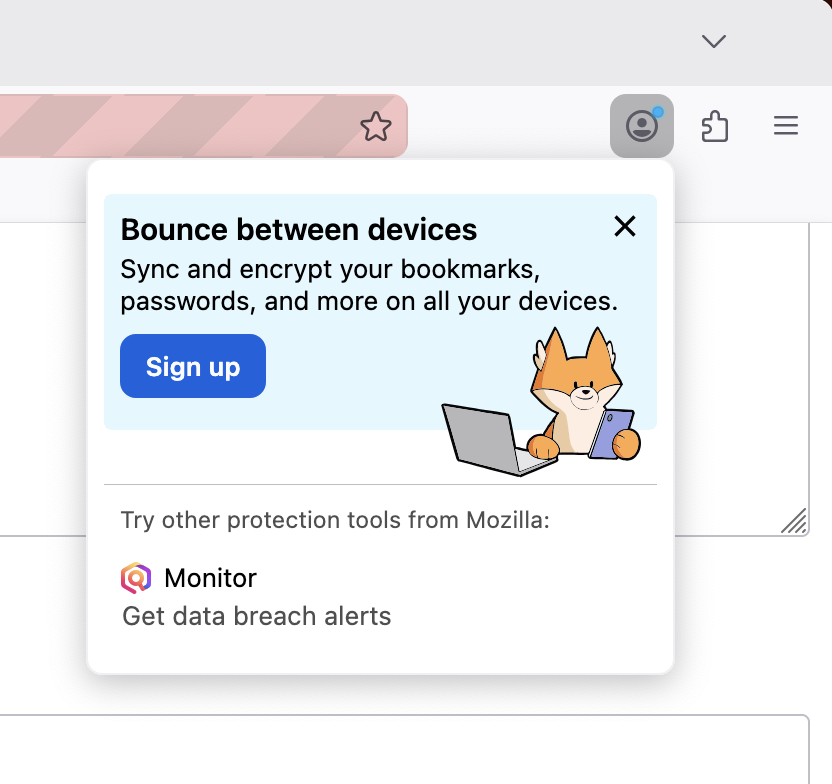

PXI Menu — fxa_cta with row layout

{
  "id": "FXA_ACCOUNTS_PXIMENU_ROW_LAYOUT",
  "template": "menu_message",
  "content": {
    "messageType": "fxa_cta",
    "layout": "row",
    "primaryText": "Bounce between devices",
    "secondaryText": "Sync and encrypt your bookmarks, passwords, and more on all your devices.",
    "primaryActionText": "Sign up",
    "primaryAction": {
      "type": "FXA_SIGNIN_FLOW",
      "data": {
        "where": "tab",
        "extraParams": {
          "utm_source": "firefox-desktop",
          "utm_medium": "product",
          "utm_campaign": "some-campaign",
          "utm_content": "some-content"
        },
        "autoClose": false
      }
    },
    "closeAction": {
      "type": "BLOCK_MESSAGE",
      "data": {
        "id": "FXA_ACCOUNTS_PXIMENU_ROW_LAYOUT"
      }
    },
    "imageURL": "chrome://browser/content/asrouter/assets/fox-with-devices.svg",
    "imageWidth": 100,
    "imageVerticalTopOffset": -4,
    "imageVerticalBottomOffset": -32,
    "containerVerticalBottomOffset": 20
  },
  "trigger": { "id": "menuOpened" },
  "testingTriggerContext": "pxi_menu"
}

App Menu — default_cta with simple layout

{
  "id": "APP_MENU_DEFAULT_CTA_EXAMPLE",
  "template": "menu_message",
  "content": {
    "messageType": "default_cta",
    "layout": "simple",
    "primaryText": "Try Firefox Relay",
    "primaryActionText": "Learn more",
    "primaryAction": {
      "type": "OPEN_URL",
      "data": {
        "args": "https://relay.firefox.com/",
        "where": "tab"
      }
    },
    "closeAction": {
      "type": "BLOCK_MESSAGE",
      "data": {
        "id": "APP_MENU_DEFAULT_CTA_EXAMPLE"
      }
    }
  },
  "trigger": { "id": "menuOpened" },
  "testingTriggerContext": "app_menu"
}

Schema

MenuMessage.schema.json

Related Docs

• Targeting attributes

• Triggers

• Special Message Actions
