Telemetry Probe Alerting and Monitoring

Note

This page is still under construction, as telemetry alerting/monitoring is still in a prototype stage, and may move to its own section instead of being a part of the Performance Testing documentation.

This document provides information regarding telemetry alerting, and monitoring. The change detection aspect of the project exists in mozdetect, and the alerting/monitoring aspect exists within Treeherder. Note that the alerting/monitoring may move out of Treeherder in the future.

Follow this bug for updates, and progress on this effort.

Probe Setup

To enable alerting or monitoring on a telemetry probe, the monitor field will need to be added to the metadata section of the probe definition. See this probe for an example. The following provides all possible fields that will be accepted in the monitor field:

monitor:
  alert: True
  platforms:
    - Windows
    - Darwin
    - Linux
    - All
  bugzilla_notification_emails:
    - gmierz2@outlook.com
  lower_is_better: True
  change_detection_technique: cdf-squared
  change_detection_args:
    - threshold=0.85
    - short_term_spikes_ignored=True

Our telemetry change detection tooling provides the ability to either produce alerts in Bugzilla, or only produce emails for monitoring by probe owners. For only monitoring, this behaviour can be specified by either setting the monitor field to a boolean True value or setting the alert field to False.

Setting alert to True will enable alerting through bugzilla. When alert is set to True the monitor emails will no longer be sent to probe owners, and they will instead be notified of the changes through bugzilla bugs where they will also be need-info’ed. For alerting to work, the bugzilla_notification_emails must be set. Otherwise, bugs will not be produced since we cannot guarantee that the existing notification_emails setting for the probe has an email that is from a valid Bugzilla profile. At the moment, we will only needinfo the first email in the bugzilla_notification_emails (subject to change).

If the probe has a notion of lower or higher values being better, the lower_is_better can be set. Otherwise, all changes are treated as generic changes and they won’t be classified as regressions or improvements.

Default Settings

When monitor is simply set to True or to a dictionary with no changes to change_detection_technique or change_detection_args then we provide a set of default values that should be usable for most cases.

The change detection technique used by default is cdf_squared or squared Cumulative Distribution Function (CDF) differences with a threshold that is determined automatically based on the Telemetry timeseries. This technique does not currently accept any arguments through change_detection_args.

By default, only the Windows, Linux, and Darwin platforms are looked at. If the All platform is needed, it needs to be explicitly mentioned.

Limitations and Caveats

  1. The default change point detection technique only works for telemetry probes that have numerical data.

  2. The detection only runs on Nightly data. See bug 1947262 for progress on performing detection in the Beta and Release channels.

  3. The telemetry probe data must exist in the GLAM aggregate dataset (i.e. it must be viewable on the GLAM dashboard)

  4. This is currently only available for GLEAN probes.

  5. Android telemetry is not currently supported due to a bug.

Monitoring Alerts

Note

This section will be expanded on in the future, and is currently incomplete.

The primary ways of monitoring at the beginning will be through Bugzilla queries, and redash dashboards. These two views will be used for this: Bugzilla Query, and Redash Dashboard. This may be expanded in the future.

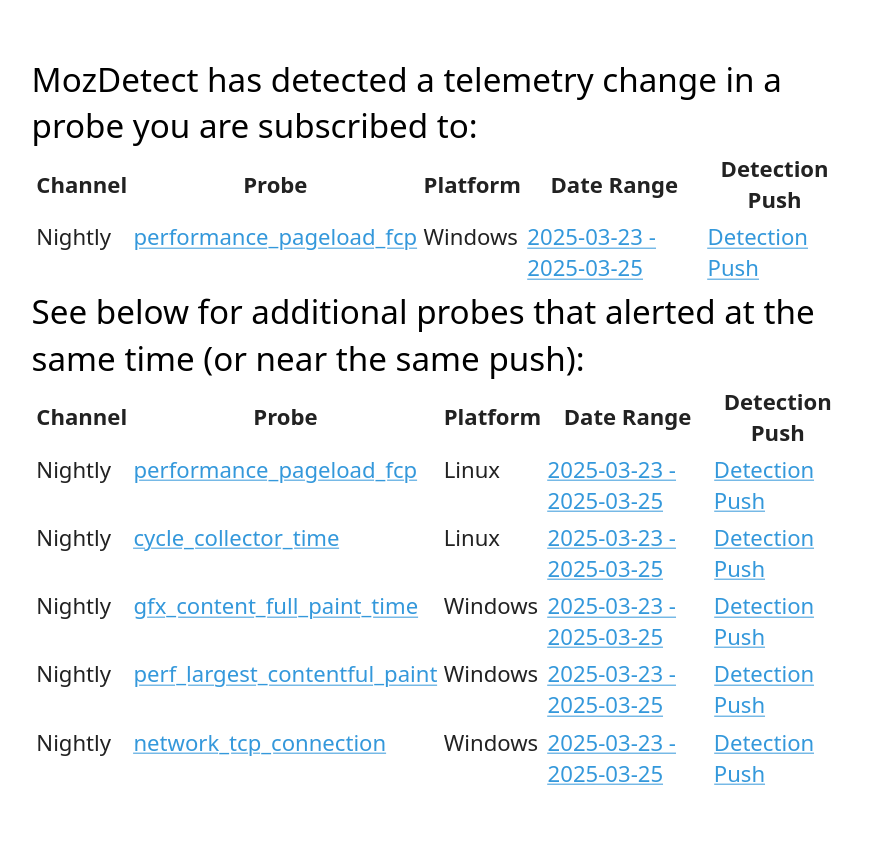

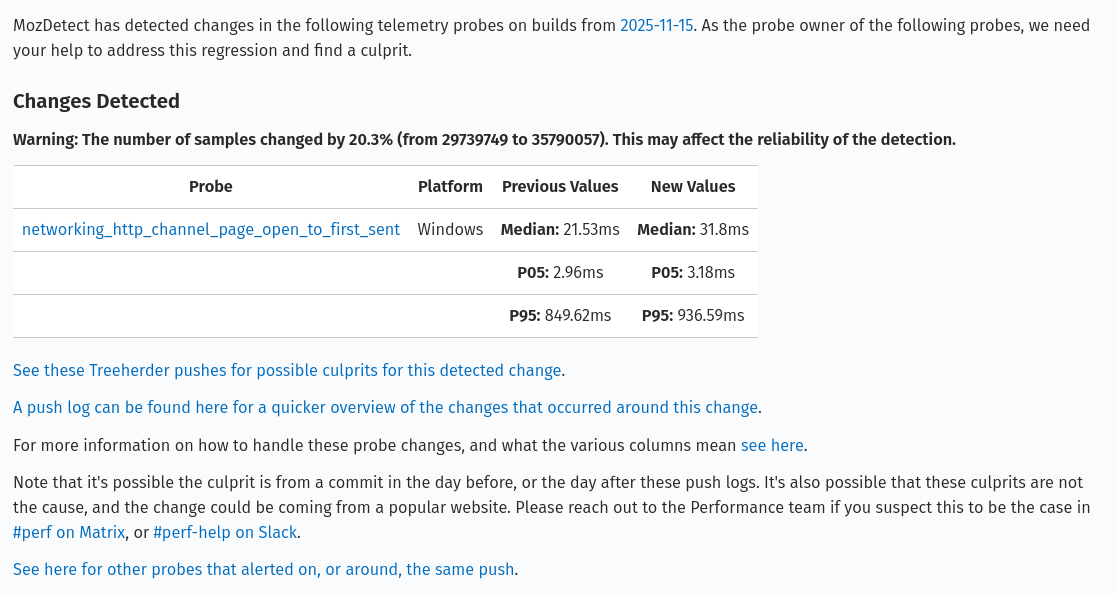

Understanding Alerts and Emails

Note

The content of the alerts and emails are subject to change and their contents are currently incomplete. This section will be filled out in the near future.

Expected Workflow From Probe Owners

With telemetry probes that are only being monitored, there are no expectations of actions or a workflow from probe owners. These are tracked in the Redash Dashboard but it’s up to the owners to determine what to do with the notifications they receive as emails.

When it comes to telemetry probes that produce Bugzilla bugs, we expect the probe owners to begin investigating them within 3 days of the alert being produced. If no activity occurs on the bug in 7 days, a Bugbot rule will begin commenting asking for updates and some performance team members (or performance sheriffs) will begin pinging the probe owner in Matrix and/or Slack. See here for our guidelines/process on this in CI alerts which will also be applied here.

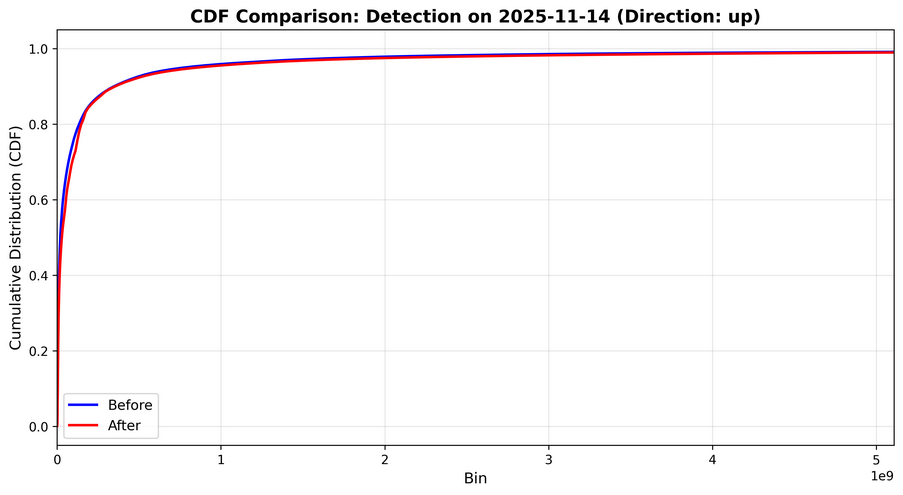

In the investigation, developers are expected to determine if there exists a potential culprit for the change detected in the range of pushes/commits provided in comment #0 in the alert bug. A link to a range of pushes in treeherder is provided for this. There is also a link to GLAM for the probe which should be verified to see if there’s a visible change in the probe metric on the date of the detection (i.e. the dates of the push range). It’s possible that the culprit exists just outside the range that was provided so it’s recommended to check +/- 1 day around the range that was provided to be sure that nothing was missed. If there are no potential culprit commits in the range of pushes, it’s possible the change in telemetry is unrelated to changes in the product.

When a culprit is identified, the culprit author needs to be notified of the alert and the probe owner will need to work with them to come up with a solution for the change. There are no requirements for the amount of time that can elapse between an alert being produced and the alert being resolved, however, it’s best to resolve them quickly and regular updates are expected.

There are 4 primary resolutions that can be provided for the alert bugs:

  • FIXED: The detected change was fixed with a follow-up patch, or a backout.

  • WONTFIX: The detected change is real and there is a valid culprit, but the change will not be fixed.

  • INVALID: The detected change is real, but there is no valid culprit and the change will not be fixed.

  • WORKSFORME: The detected change is attributed to noise in the telemetry probe metrics or otherwise is not a true detection.

The bug resolutions are directly reflected in the alert database and are updated on a daily basis.

Tooling Overview

Telemetry alerting is split into two parts. The first is the detection tooling which exists in the mozdetect repository. The second is the actual alerting/monitoring tooling that uses mozdetect and it exists in Treeherder (subject to change).

The change detection tooling is all defined in mozdetect, and Treeherder makes use of mozdetect to perform the detection on data from GLAM aggregation tables. This split allows us to easily test, and make new change detection techniques without being hindered by setting up Treeherder. Treeherder is only needed to test changes to the alerting/monitoring tooling. This includes:

  • Adding the detections into the database.

  • Associating detections with mozilla-central pushes.

  • Making alert bugs.

  • Sending emails.

  • Update alerts with bug resolutions.

  • General alert management.

Treeherder uses the get_timeseries_detectors method from mozdetect to find a list of detectors available and uses the change_detection_technique field defined in the probe to pick which technique to use (cdf_squared is used by default). Once the technique is determined, change detection is run on all specified platforms (by default all the platforms except for the All platform are used). Then, for all the detections returned, we parse the build ID into a mozilla-central push. This is then used to associate the alerts produced with a single detection push, along with a range of potential pushes.

These detections run once per day for all probes. After all alerts are created, the alert manager runs through four ordered steps:

  1. Update existing alerts with new information from Bugzilla.

  2. Create bugs for the new alerts.

  3. Modify the bugs to link all alerting probes from the same detection push/range.

  4. Notify probe owners that only requested monitoring of alerts through emails.

After probe owners are notified of the alerts, the Treeherder tooling ends and runs through this process again the next day.

Adding Change Detection Techniques

If you’re interested in adding new change detection techniques, or testing out existing ones. Head over to the mozdetect repository for information about how to do this. The process involves creating a new technique in that repo, and then updating the module in Treeherder to make it available.

Additional Help

Reach out to the Performance Testing, and Tooling team in the #perftest channel on Matrix, or the #perf-help channel on Slack.
